V-HARROW
STRAW HARROW FOR DIRECT SEEDING
The V-Harrow is an ideal machine to manage crop residue and prepare the seedbed for optimal seed-to-soil contact while preserving soil structure.
Straw spreading and field unification. Ideal for cereal stubble management – uniformly distributed straw residues to prepare the field for the next crop cycle.

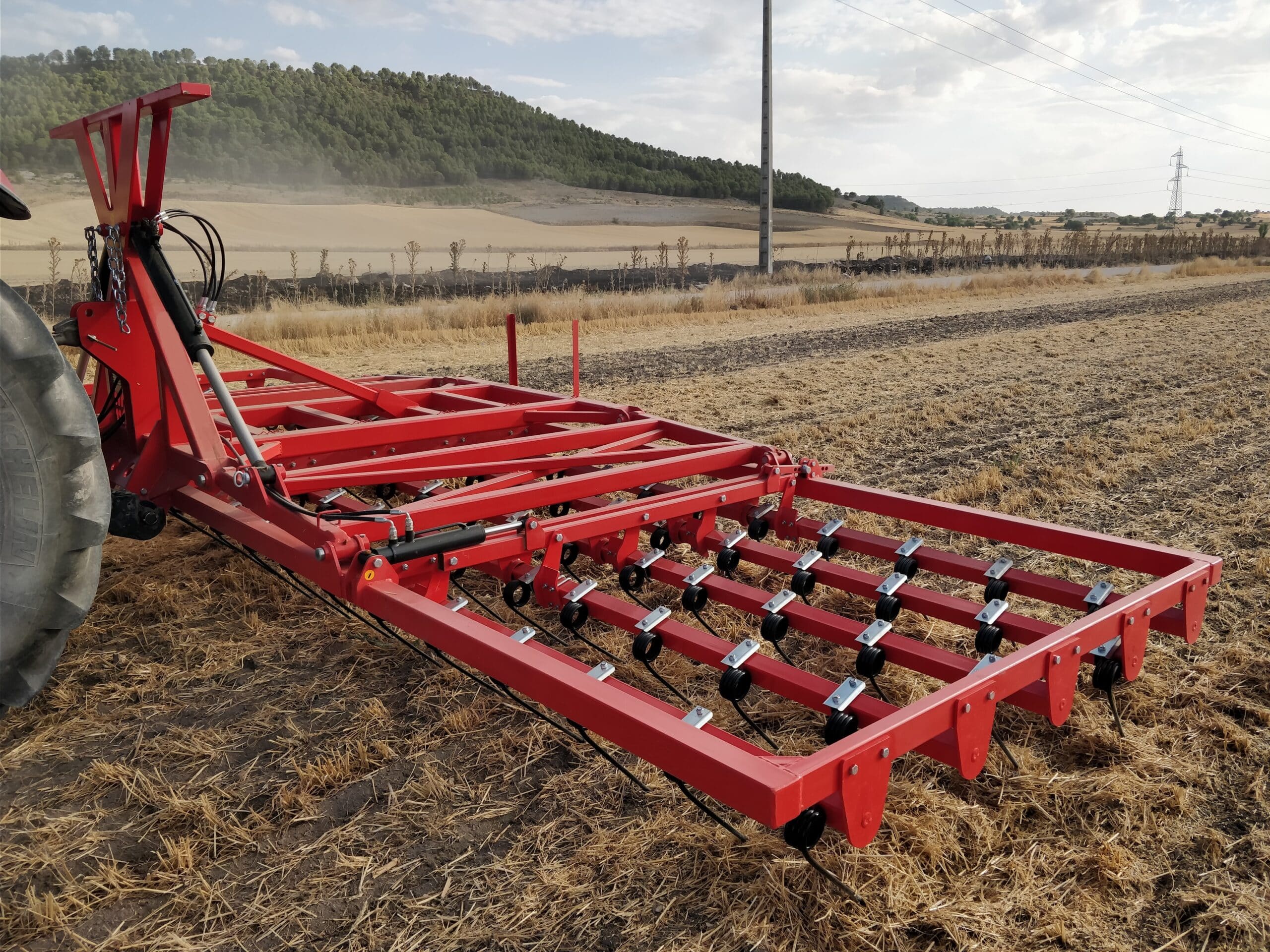

Easily control tine inclination with an hydraulic system for optimal field adaptation and performance.
Designed with oscillating bodies to ensure effective soil contact and consistent results.
Machine with five rows, with 12mm steel barbed treated.
EFFICIENT CROP MANAGEMENT
Highly effective for seed germination in fields planted with a variety of cereals or forages.
Seedbed preparation and field unification.
SPECIFICATIONS
model 7
| Specifications | Model 7 |
|---|---|
| Working Width | 7 m |

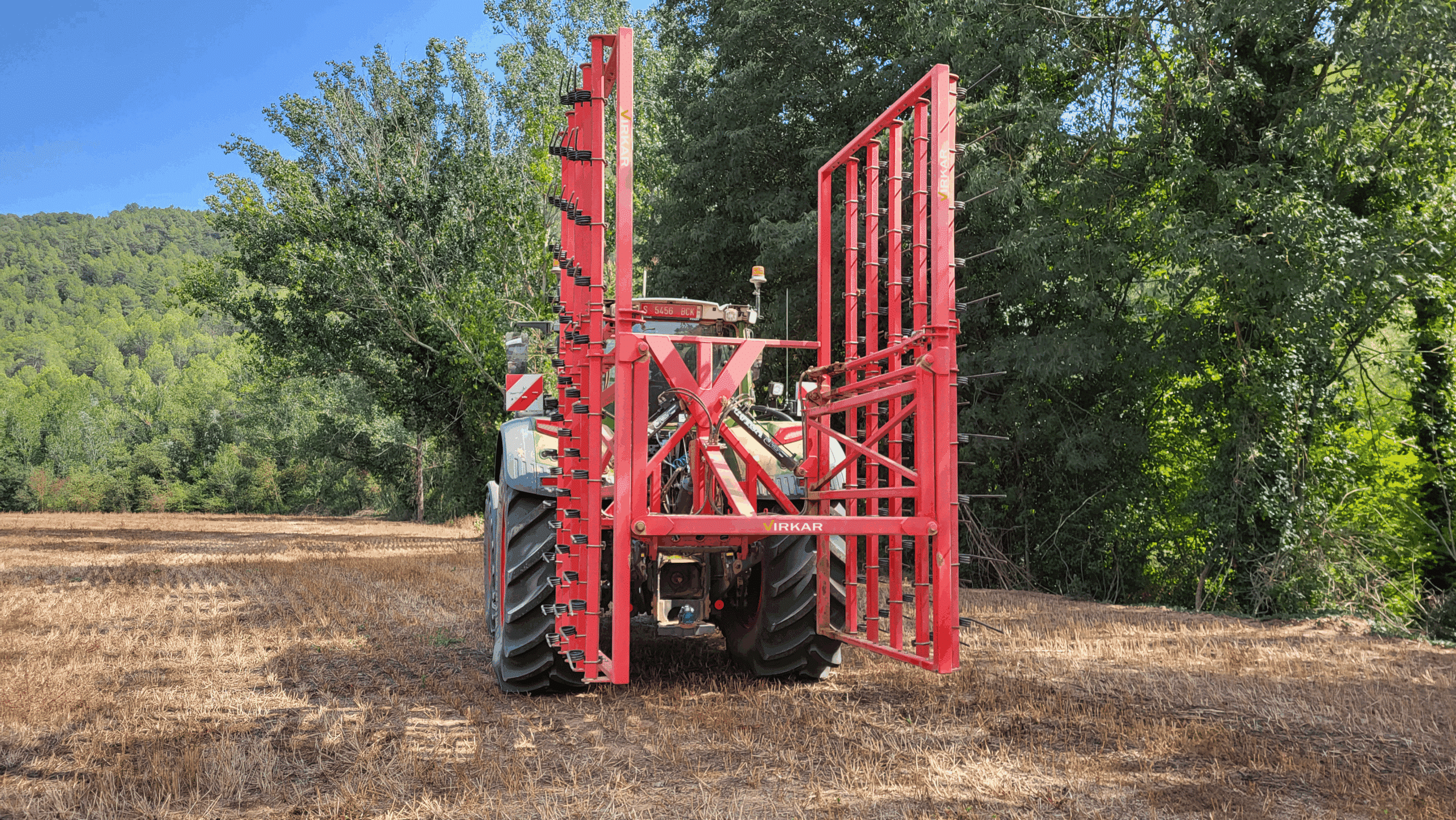

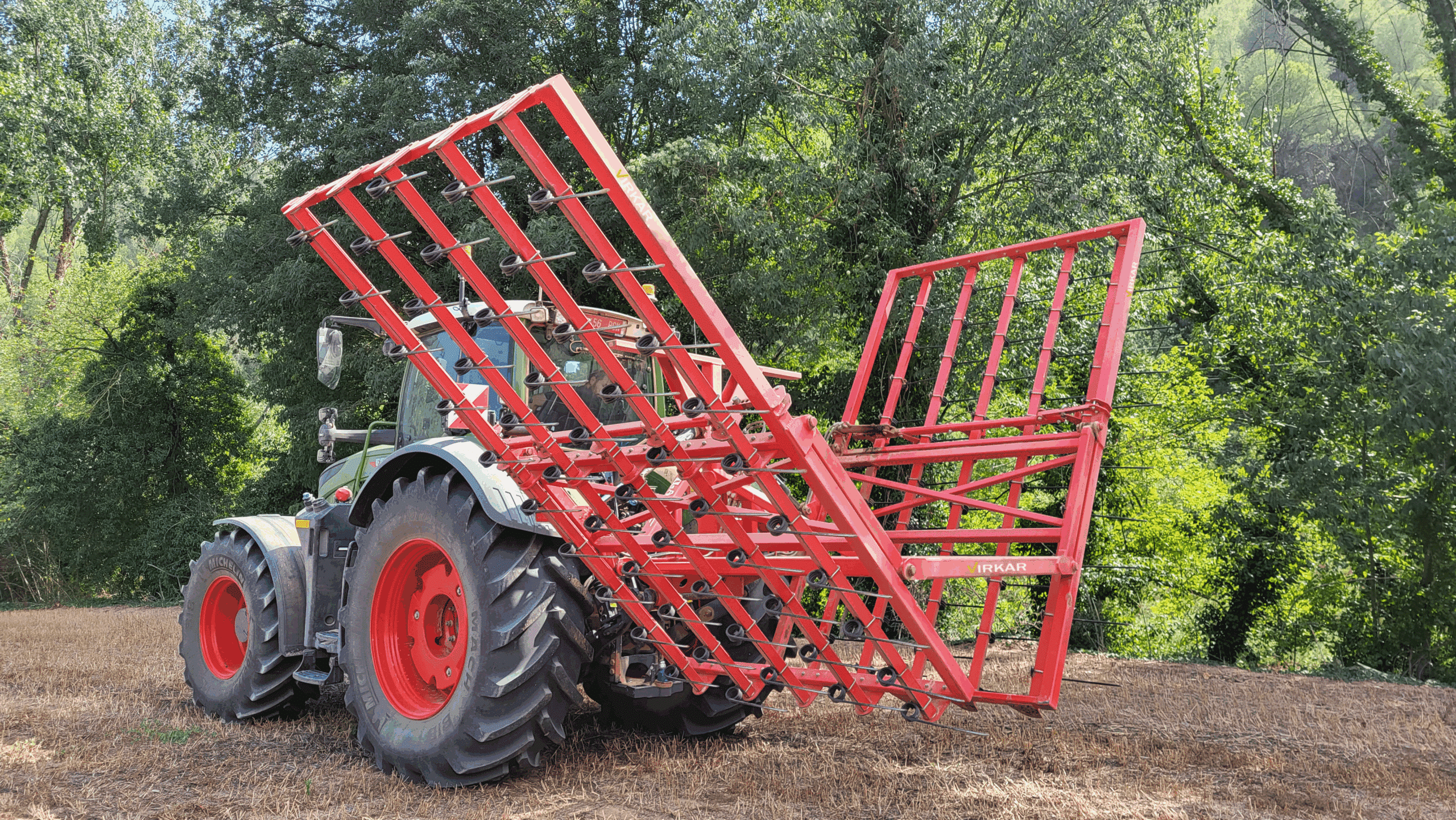

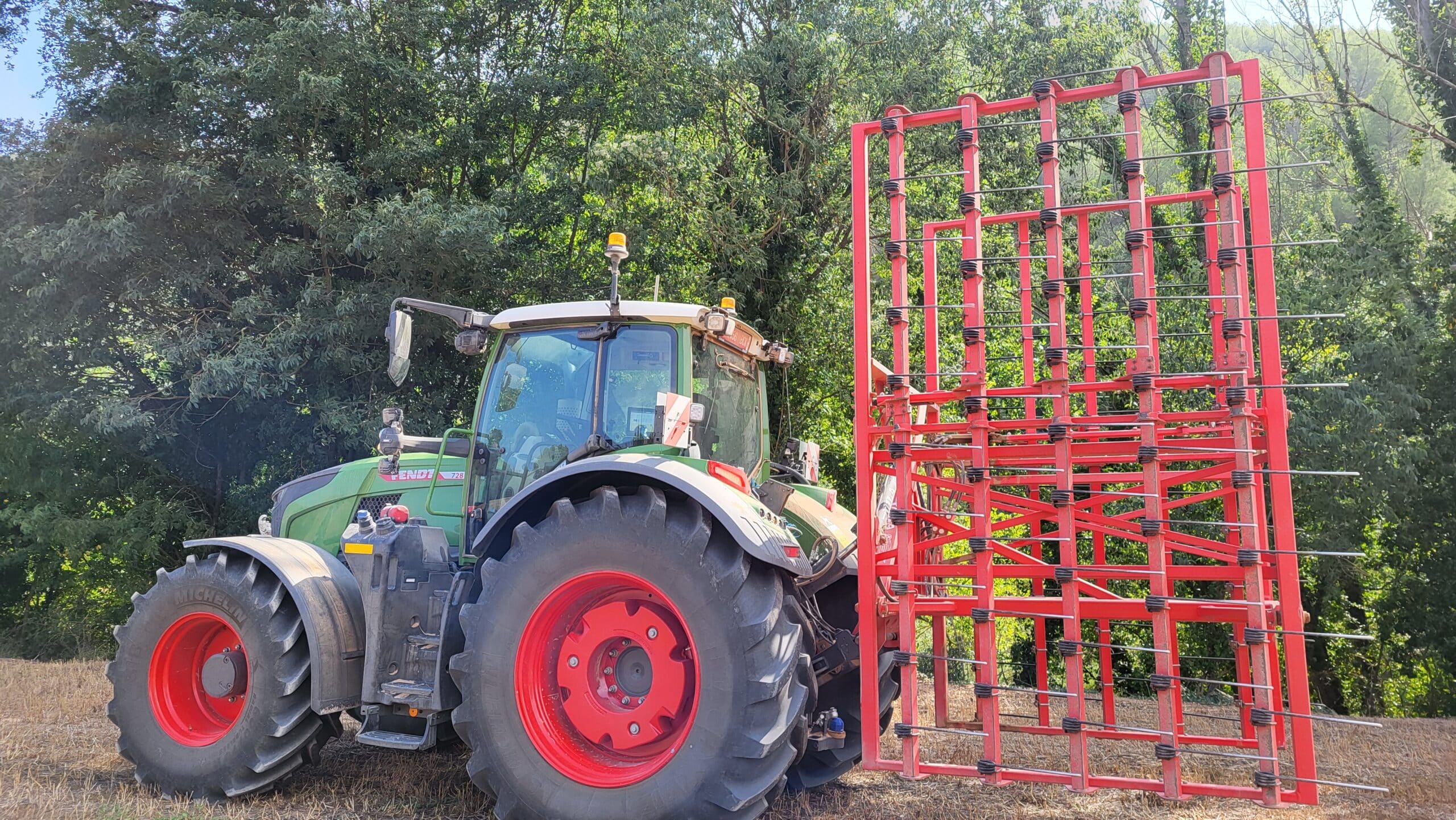

| Folding system | Vertical |
| Number of Rows | 5 rows |
| Number of tines | 100 tines |
| Diameter tines | 12 mm |
| Weight (aprox) | 1,400 kg |
model 9,7
| Specifications | Model 9,7 |
|---|---|
| Working Width | 9,7 m |
| Folding system | Vertical |
| Number of Rows | 5 rows |
| Number of tines | 140 tines |
| Diameter tines | 12 mm |
| Weight (aprox) | 1,800 kg |
