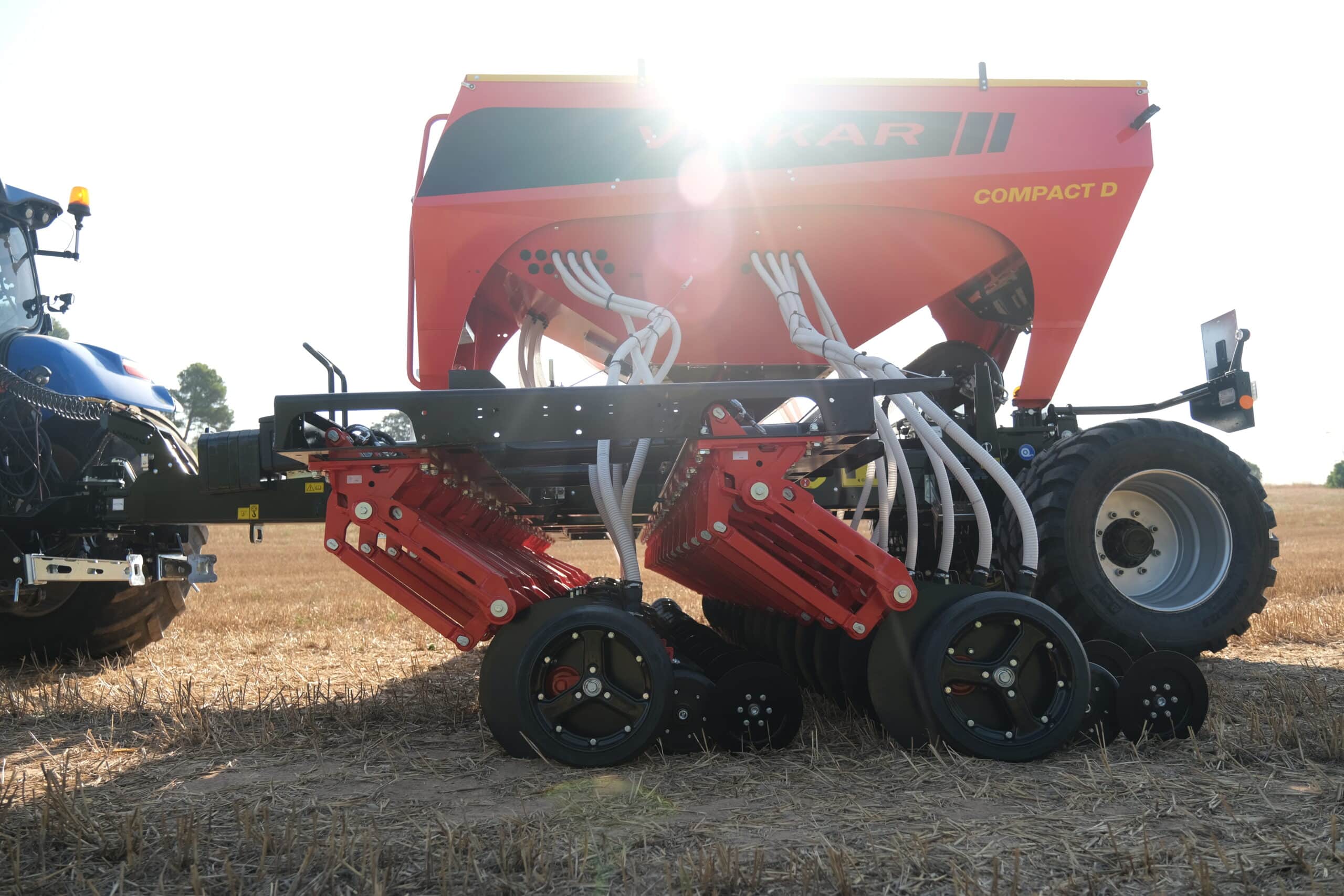

COMPACT D
COMPACT Series
Adaptability to the highest level
The best no-tillage system in multiple terrains and conditions.
Autonomy
You decide when the workday ends.
Up to 6,160 liters of hopper capacity in compact transport dimensions, allow long working hours with the Virkar Compact seeder. Work faster and with lower operating costs.
Everything under control
Smart Virkar system for hydraulic control. Electric dosing control via ISOBUS compatible with GPS positioning for automatic steering and maps.

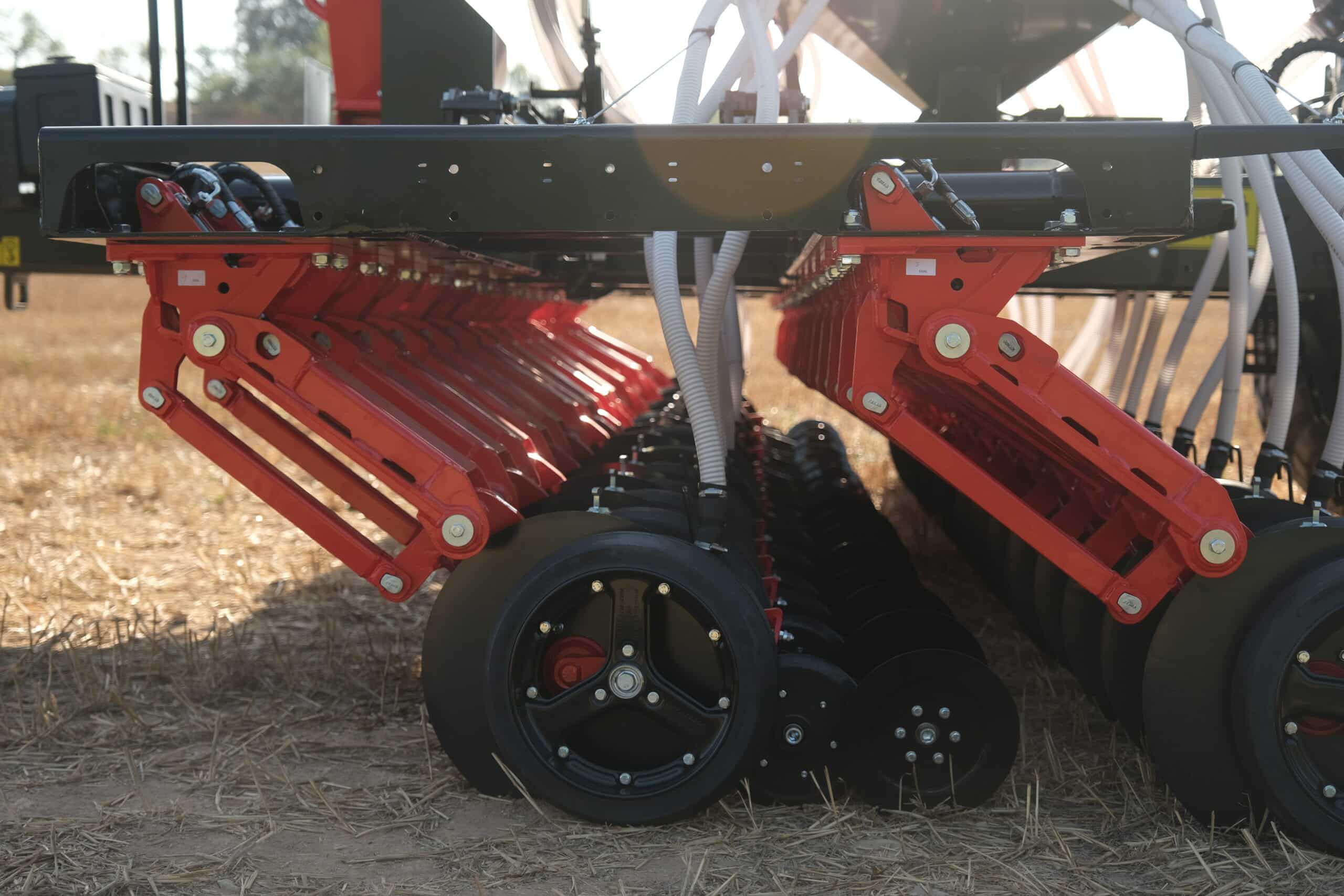

TotalContour
Also in single disc
Useful working range of 35 cm high with parallelism.
Allows a working pressure from 0 to 200kg.
Multiple adjustable elements to adapt to the terrain’s needs.
- Depth control wheel
- Boot height
- Spacing between the disc and the depth control wheel
- Angle of the closing wheel
- Closing wheel pressure
Use of standard bearings and friction bushings without greasing.
Comfort
The pleasure of working
The possibility of machine lifting facilitates access to planting grounds, always with a very low centre of gravity. The ease of access to the hopper, the toolbox and multiple other details, make the Virkar Dynamic a machine that has taken into account the comfort of the farmer in order to better perform his work.
PERFORMANCE
Options
Multiproduct
Hopper extension
Folding orientable conveyor
Specifications
| Wheel with flotation tyre | 560 / 45-R22,5 |
| Hopper capacity | 5.060 litres |
| Machine weight | 5.000 kg |
| Seed distribution | Pneumatic seeding system |
| Seed rate | From 2 to 380 kg/hectare |
| Distance between seed units | 19 cm / 25 cm |
| Transport folding | Automatic lock |
| Dosage | Electrical (ISOBUS) |
| Opener and depth control | TotalContour system with quick height adjustment |
| Useful work height range | 35 cm |
| Hydraulic equipment requirements | 4 distributors + 1 free return |
| Minimum tractor power required | 130 hp |
| Standard accesories |
|
| Additional features |
|
6 m
3 m
4,5 m / 5 m / 6 m
3,10 m
Gallery
