ADAPTABLE
Virkar Dynamic’s seeder has a great capacity to adapt to different terrains and environmental conditions. Available in 4.5, 5 and 6 meters.
AUTONOMY
With 5.300 liters of hopper capacity in compact dimensions of transport, the Ocean seeder allows long working days. Sow faster and with lower operating costs.
TOTAL CONTOUR
Most advanced no-tillage system on the market. It can be used to work on the different types of soil and in the most difficult conditions involving stones, harvest residue and high moisture. The hydraulic control of the disk-coulter combination allows optimum seeding throughout the whole depth range with a low maintenance cost.
Most advanced no-tillage system on the market. It can be used to work on the different types of soil and in the most difficult conditions involving stones, harvest residue and high moisture. The hydraulic control of the disk-coulter combination allows optimum seeding throughout the whole depth range with a low maintenance cost.

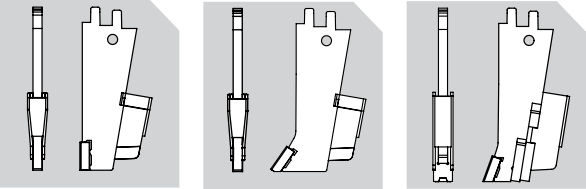

The coulter with tungsten toe is interchangeable. There are different compatible versions to adapt better to different terrains and seeds.
Perfect adaptation to the ground with differences up to 35 cm, remaining perpendicular and at the chosen depth
With long life Virkar bushings to avoid grease fittings and standard bearings
ACCESIBILITY
In addition to easy access to the weight operations under the hopper, the possibility of lifting the machine also facilitates the access to the planting grounds, always with a very low gravity center. The central arrangement of the machine wheels allows a great maneuverability.
.
In addition to easy access to the weight operations under the hopper, the possibility of lifting the machine also facilitates the access to the planting grounds, always with a very low gravity center. The central arrangement of the machine wheels allows a great maneuverability.
.
PERFORMANCE
The turbo disc prepares the ground so that the knife opens the furrow, free of straw and vegetable remains, at a higher depth and without compacting the ground. The seed is deposited at the exact depth in the entire range due to the parallelism and the depth regulation system. The capper wheel perfectly covers the seed in the multiple conditions of the soil. The system allows an optimal rooting of the roots and an excellent germination.
COMFORT
The easy access to the hydraulic connection, the tool box and many other details, make the Virkar Dynamic a machine that has taken into account the comfort of the farmer to be able to perform his work better.
DOSAGE
The Virkar Dynamic seeder allows the hopper partition to have different dosing possibilities.
1 product
5.300 l
2 products
1.850 l / 4.440 l
3 products
1.850 l / 3.000 l / 350 l
FREE DRIVE
It provides a new degree of freedom, allowing sowing in curved trajectories of up to 8 meters of radius keeping the distances between sowing lines. System that releases tension of the seed train lengthening the life of the components. Allows blocking for road transport.
DYNAMIC Series
| Specifications | |
|---|---|
| Wheel with flotation tyre | 500 / 45-22,5 |
| Hopper capacity | 5.300 l |
| Machine weight | 4.500 kg* |
| Seed distribution | Pneumatic seeding system |
| Seeding rate | From 2 to 380 kg/hectare |
| Distance between sede units | 19cm / 25cm |
| Knife | Tip / Flat |
| Transport folding | Separate side panels with automatic locks |
| Dosage | Mechanics / Hydraulics (GPS) / Electrical (ISOBUS) |
| Hydraulic system | Autonomous / Tractor |
| Opener and depth control | TotalContour system with quick height adjustment |
| Working height range | 35cm |
| Minimum working radius | 8m |
| Minimum tractor power required | 130cv |
| Standard accesories |
|
|
4,5 m / 5 m / 6 m
3,00 m
7,20 m
3,10 m
